Load Cells

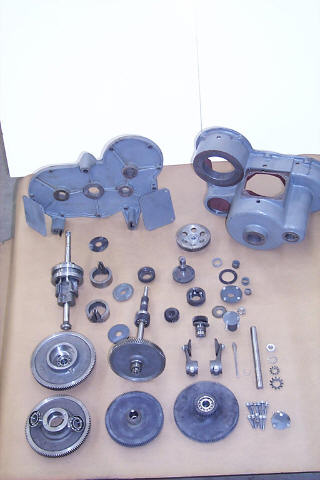

GEARBOX REBUILD
thumbnail - click for larger view

GEARBOX REBUILD

  • COMPLETE DISASSEMBLY AND INSPECTION
    OF ALL GEARS
  • REPLACE ALL BEARINGS
  • RESURFACE CLUTCH SURFACES
  • BORE LUBRICATION AND INSPECTION HOLES
  • PAINT ALL OUTER SURFACES

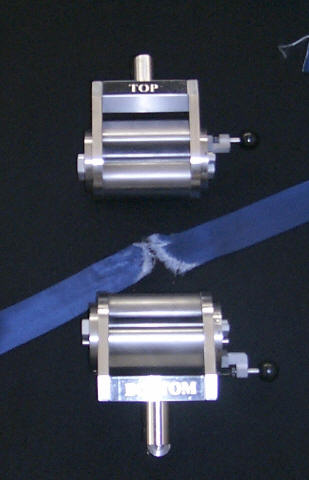

CAPSTAN WEBBING GRIPS
thumbnail - click for larger view

CAPSTAN WEBBING GRIPS

  • STAINLESS STEEL CONSTRUCTION
  • EASY LOAD AND UNLOAD
  • 1 ¼” GRIP ADAPTERS WITH ½” CROSS DRILLED PIN MOUNTS
  • 10,000 LB. LOAD CAPACITY
  • 4” WIDE SAMPLE CAPACITY

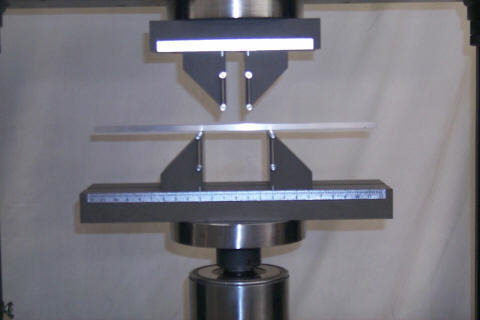

4 POINT BEND FIXTURE
thumbnail - click for larger view

4 POINT BEND FIXTURE

  • ALUMINUM CONSTRUCTION WITH STAINLESS STEEL LOADING ANVILS
  • 6” SPAN ON THE UPPER LOADING NOSE
  • 12” SPAN ON THE LOWER LOADING NOSE
  • CENTER MOUNTING HOLE FOR EASY SET UP
  • INCH OR METRIC GUIDE RULES
  • ALUMINUM HARD COAT FINISH

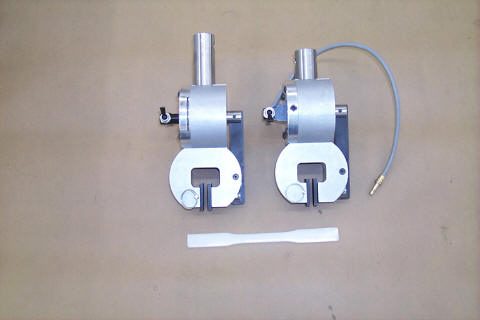

1000 LB. CAPACITY PNEUMATIC ACTION CLAMP
thumbnail - click for larger view

1000 LB. CAPACITY
PNEUMATIC ACTION CLAMP

  • BILLET ALUMINUM CONSTRUCTION
  • OVER 1400 LBS. OF CLAMPING FORCE
  • 1 ¼” ADAPTERS WITH ½” CROSS-DRILLED PIN MOUNT
  • BUILT IN TOGGLE AIR VALVES FOR CONVENIENT OPERATION
  • FULL SELECTION OF INTERCHANGEABLE GRIP FACES

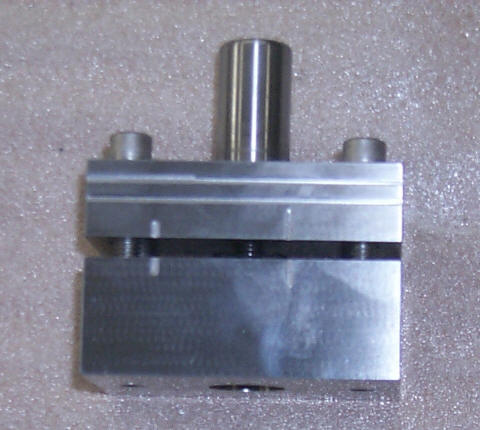

ASTM D732 TEST FIXTURE PUNCH
thumbnail - click for larger view

ASTM D732 TEST FIXTURE PUNCH

  • PRECISION GROUND AND HARDENED SURFACES
  • ACCEPTS SAMPLES FROM 0 - .500 INCHES
  • PRECISION GUIDE


thumbnail - click for larger view

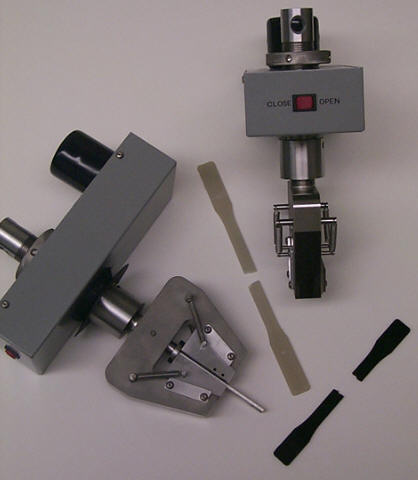

ELEC-TREX WEDGE GRIP

  • ELECTRIC MOTOR DRIVEN WEDGE ACTION GRIP

  • STAINLESS STEEL HOUSING & NUT ASSEMBLY

  • MOVING HOUSING DESIGN

  • EASY OPEN & CLOSE ROCKER SWITCH OPERATION

  • 2,500 LBS. CAPACITY

  • HARDENED & GROUND HOOK TOOTH DESIGN GRIP FACE

  • STANDARD 1 ¼” STUD WITH ½” PIN MOUNT

  • PRECISION GUIDE


thumbnail - click for larger view

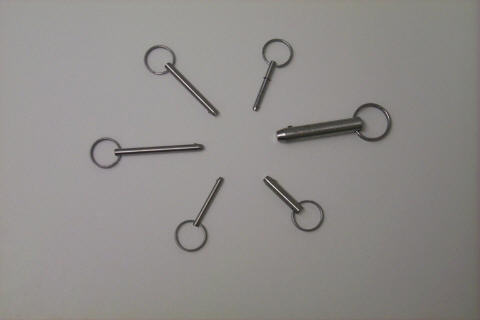

EASY PULL FIXTURE MOUNTING PINS

  • STAINLESS STEEL CONSTRUCTION

  • BALL DETENT TO ELIMINATE ACCIDENTAL PIN LOSS

  • CAPACITIES TO 12,000 LBS.

  • INCH & MILLIMETER DIAMETERS

  • ASSORTMENT OF LENGTHS

  • FULL COMPATIBILITY WITH INDUSTRY STANDARD FIXTURING


thumbnail - click for larger view

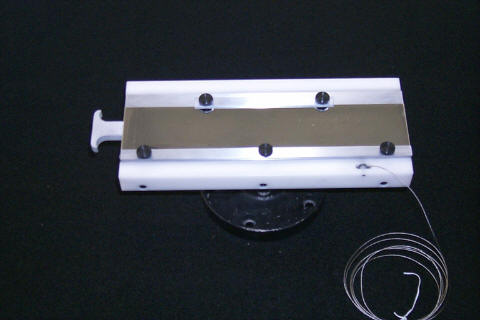

90° PEEL ADHESION FIXTURE

  • ALUMINUM & NYLON CONSTRUCTION

  • CROSSHEAD DRIVEN PLATEN

  • ADJUSTABLE PLATEN TENSION

  • EASY GRIP PULL RETURN

  • STANDARD 1 ¼” STUD WITH ½” PIN MOUNT

  • HIGHLY POLISHED 2" X 11" STAINLESS STEEL ADHESION PLATES


thumbnail - click for larger view

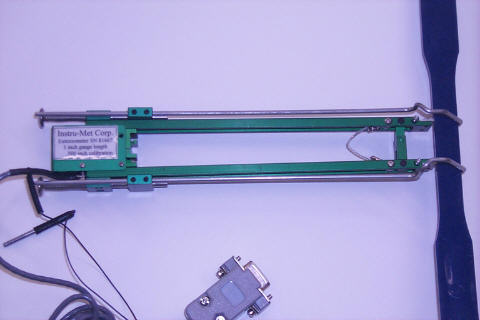

CLIP-ON EXTENSOMETERS

  • WE CAN SUPPLY A WIDE VARIETY OF SIZES TO MEET YOUR TESTING NEEDS

  • PLEASE CONTACT US FOR A QUOTE


thumbnail - click for larger view

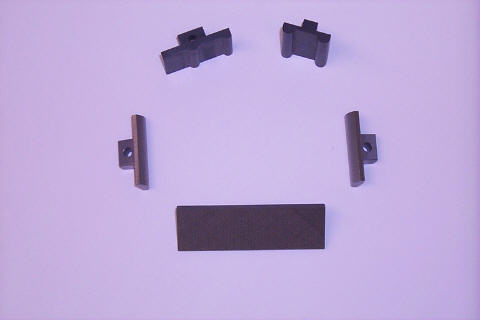

REPLACEMENT GRIP FACES

  • FULL COMPATIBILITY WITH INDUSTRY STANDARD MANUAL & PNEUMATICALLY OPERATED GRIPS

  • CUSTOM DESIGN FACES FOR SPECIAL APPLICATIONS

  • FULL COMPLIMENT OF RUBBER & SERRATED SURFACES




thumbnail - click for larger view

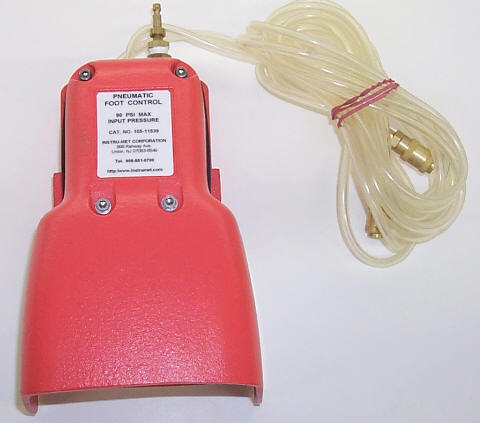

PNEUMATIC FOOT CONTROLLER FOR AIR OPERATED GRIPS

  • DUAL CONTROL VALVE IN A SINGLE HOUSING

  • TWO POSITIONS WITH DETENTS FOR SEPARATE UPPER & LOWER GRIP CONTROL

  • EASY KICK TO RELEASE OPERATION


thumbnail - click for larger view

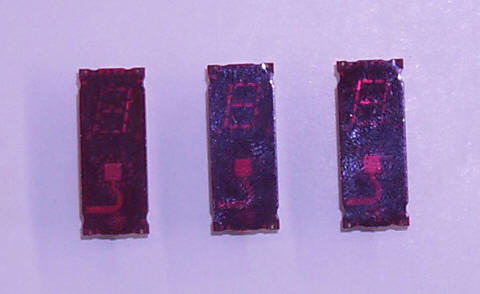

DIGITAL LED CHIPS

  • used in Instron Extension Measurement Unit (EMU)

  • used in Instron dual-channel readout


thumbnail - click for larger view

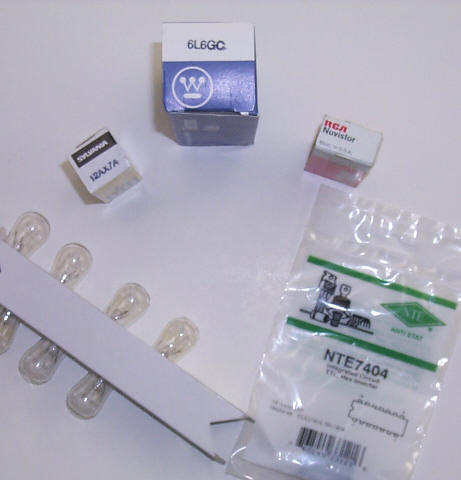

REPLACEMENT PARTS FOR ELECTRONIC CONSOLES

  • LAMPS

  • TRANSISTORS

  • TUBES

  • IC CHIPS


thumbnail - click for larger view

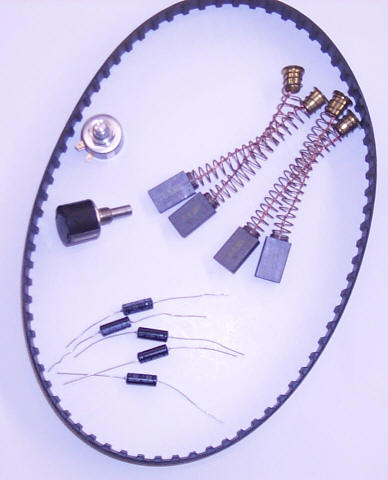

REPLACEMENT PARTS FOR FRAME CARE

  • BELTS

  • AMPLIDYNE BRUSHES

  • CAPACITORS

  • POTENTIOMETERS


thumbnail - click for larger view

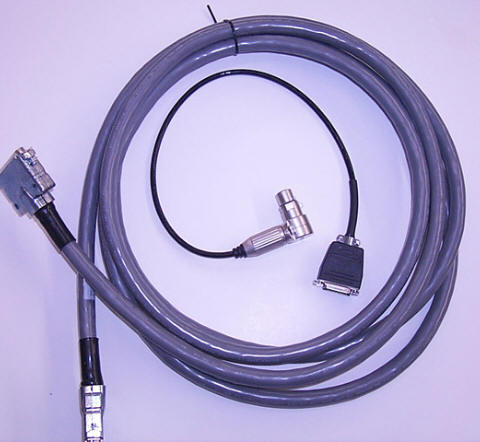

REPLACEMENT CABLES

  • FRAME CONTROL

  • LOAD CELLS

  • POWER


thumbnail - click for larger view

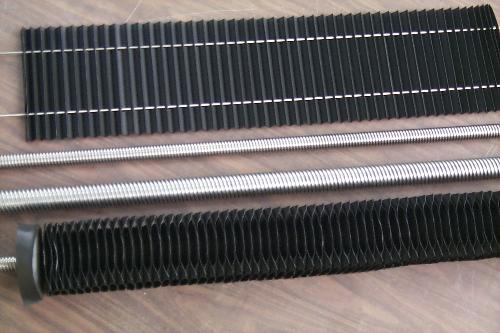

Replacement screw covers for all test frames

  • Fully welded polyurethane construction

  • Easy field replacement of flat covers

  • Helps keep screws and guides dust free

  • Maximizes machine life




thumbnail - click for larger view

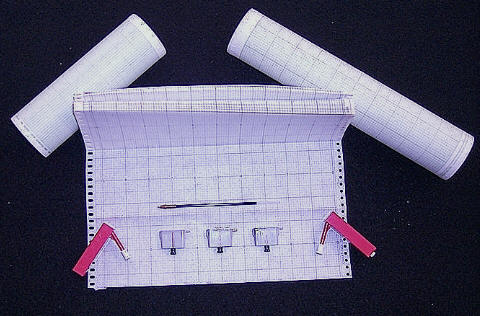

CHART PAPER AND PENS

  • BOTH "Z" FOLD & ROLL PAPER FOR FLAT BED & ROLL TYPE CHARTS

  • FELT TIP CARTRIDGE & BALL POINT TYPE PENS IN VARIOUS COLORS



thumbnail - click for larger view

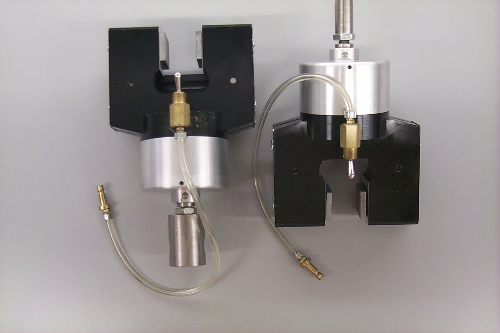

Instru-Met Wide Opening Grips

  • Specially Modified Air Grip

  • Air Operated

  • opening TO 1 INCH

  • Built In Air Valve

  • STANDARD INSTRON MOUNTS

  • CAPACITY TO 200 POUNDS

thumbnail - click for larger view

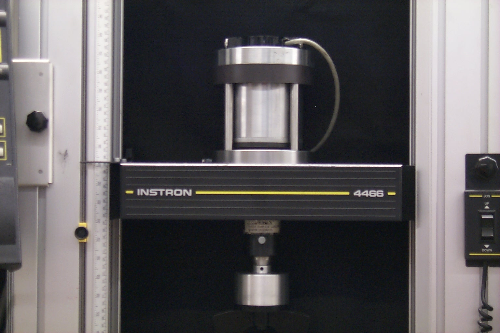

InsTRU-Met Load CELL Adapter

  • Made For Instron models 4400 and 5500 machines

  • Exact fit for Instron Drop in Load Cells

  • Can be used for both tension and compression

  • Other adapters available

thumbnail - click for larger view

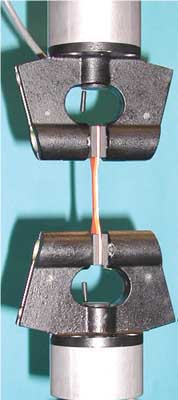

200 lbs SIDE ACTION PNEUMATIC GRIPS

  • FOR SAMPLES TO 1/4” THICK

  • CAPACITY 200 lbs

  • BUILT IN AIR TOGGLE SWITCH

  • INDUSTRY STANDARD 1 1/4” AND 5/8” MALE CLEVIS MOUNTS



thumbnail - click for larger view

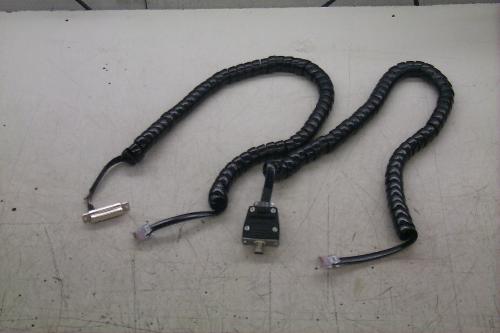

INSIGHT STRAIN ADAPTER CABLING

  • CABLING FOR ALL YOUR TESTING NEEDS

  • Provide Easy I/O for Complete Data Acquisition

  • Easily Connect Industrial  Standard Clip on Strain Gauges to MTSÔ Insight Controllers

  • Can be Configured for Laser Extensometers, Digital Extensometers or InstronÔ String Gauge Extensometers

NEW

thumbnail - click for larger view

CUSTOM PORTABLE TEST FRAME STAND

  • Make Your Test Frame Portable

  • Large Locking Casters

  • Phenolic Wheels for Easy Rolling

  • All Steel Construction

  • Custom Sizes for Any Type of Frame or Environmental Chamber

NEW



thumbnail - click for larger view

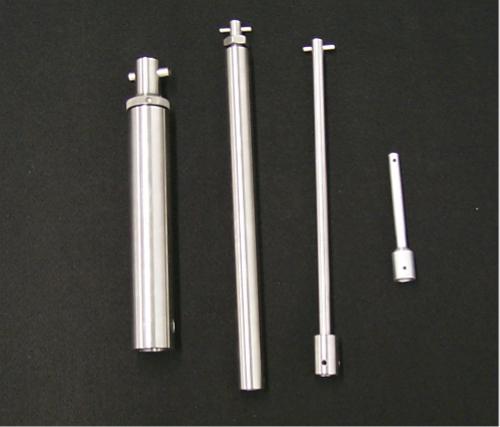

Pull rods

  • 303 Stainless Steel

  • STANDARD 1 1/4” MALE/FEMALE CLEVIS

  • STANDARD 5/8” MALE/FEMALE CLEVIS

  • SUPPLIED WITH JAM NUTS

  • VARIOUS LENGTHS

NEW

thumbnail - click for larger view

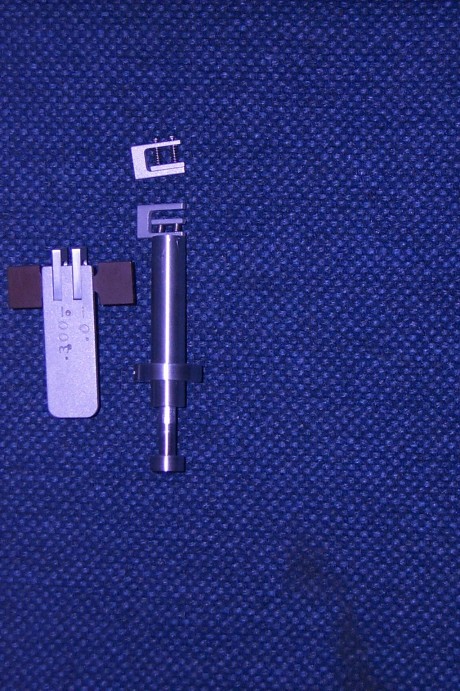

Laser Extensometer reusable targets

  • Easy One Hand Operation

  • Custom designed reusable laser extensometer reflective tape fixture

  • Made of steel or aluminum can be used in high and low temperature applications

  • Designed  to attach to specimens at set gauge lengths precisely using the included gauge length setting tool

NEW

thumbnail - click for larger view

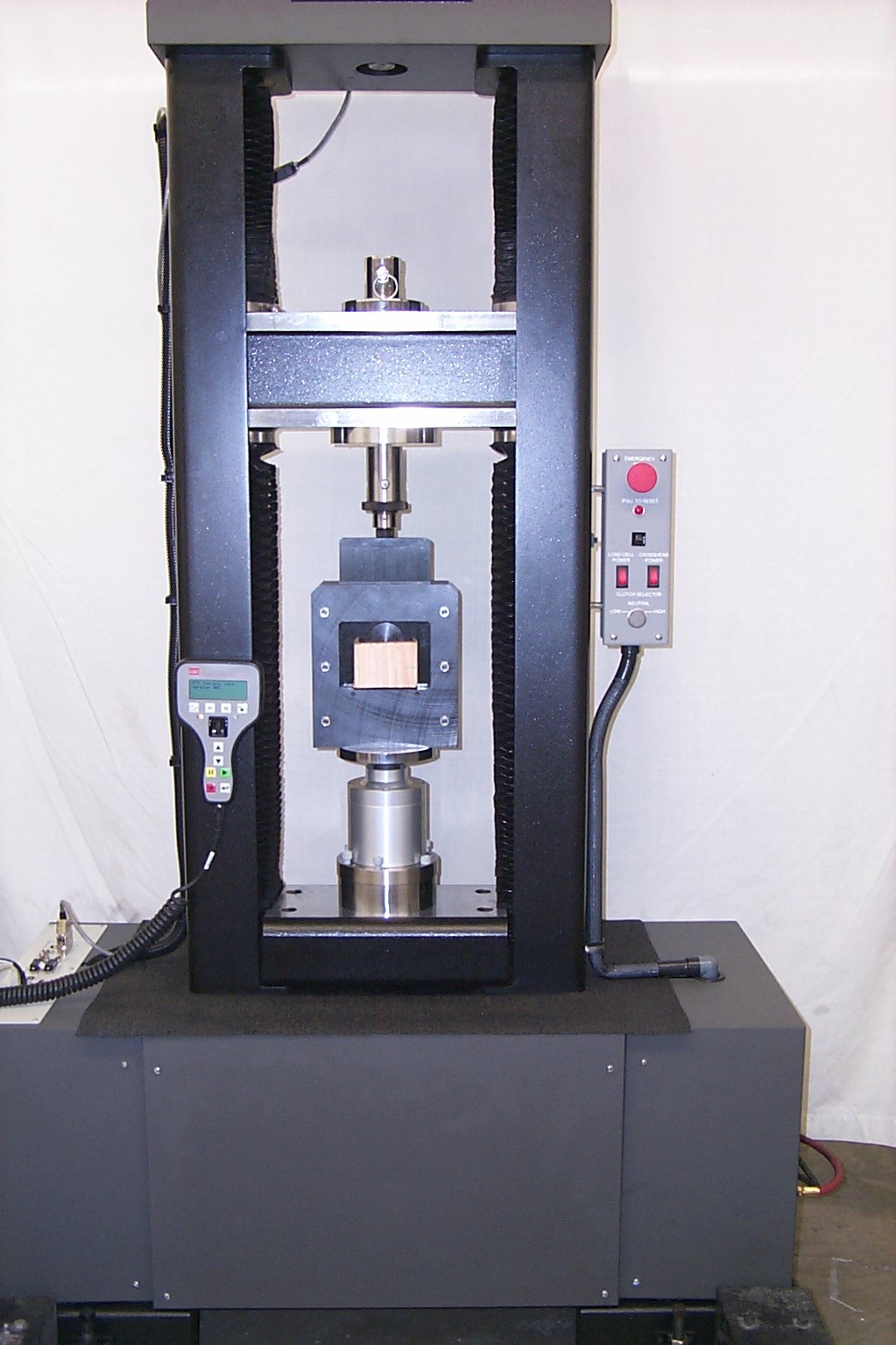

WOOD SHEAR FIXTURE

  • WOOD SHEAR FIXTURE ASTM D905

  • COMPRESSION LOADING SHEAR TOOL WITH SELF – ADJUSTING BEARING

  • USED FOR CHECKING ADHESIVE BOND STRENGTH PRIMARILY FOR WOOD

  • ACCEPTS STANDARD 13/4” X 2” X ¾” or 44.4mm X 50.8mm X 19mm TEST SPECIMENS

  • EASY BELOW THE CROSSHEAD MOUNTING AND SETUP

NEW
